UHP Gas Panel
UHP Gas Panel :
We manufacture Ultra High Purity Gas Cylinder Panel/Change Over systems Semi-automatic or Fully automatic which address diverse diverse high purity gas delivery requirements across a variety of environments, with safety top in our minds.
Our UHP Gas panels are designed to ensure trusted, reliable and safe delivery of hazardous and non-hazardous process and purge gases and come with a variety of configurations to fit customer process requirements.
Industries Used:
1. Research Institutions/R&D Centres
2. PV & Solar
3. Pharma & Bio Technology
4. Semiconductors/Optical Fibres
5. Aerospace/Defence

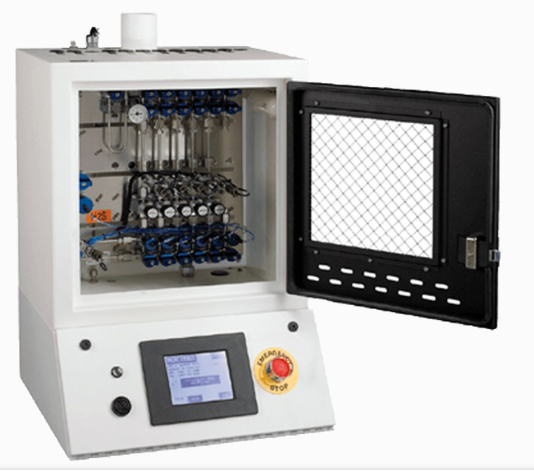

Valve Manifold Blocks (VMB's)
The VMB is the system that receives gas from the gas supply system, branches it through multiple paths and supplies it to the process system. If there are many process systems, it saves the investment cost of the gas supply system and it is easy to add and manage supply pipes. With pressure controllers and filters installed by branch pipes within the VMB, it supplies clean gas in the pressure required for each process.
System Specifications
- Supply Method : Inlet 1~2 & Outlet 4~12
- Control Method : Semi-automatic system
- Supply Flow Rate : 1~100 SLPM
- Supply Pressure : 0.1~0.9 Mpa
- System Dimensions : 800(w) x 550(d) x 2200(h)
- System Weight : 150~170kg
- Color : White Gray (EX4504(S)-SR-WH020)
System Features
- Easy to operate
- Safety device by gas characteristics
- Erroneous operation prevention interlock
- Alarms and alarm history control
- Possible to install in the explosion hazard area
- Communication support for host monitoring
